Modular OT Solutions

High‑performance Modular Operation Theatres

We supply every component required for building a high‑performance Modular OT—each system designed to integrate seamlessly, reduce infection risk, and enhance surgical efficiency.

Design + Build readyNABH / JCI alignedTurnkey or component supply

Modular OT Project in mind?

Share your floor plan or concept and receive a structured bill of materials and compliance checklist.

Schedule a Discussion Download MOT Resources

Complete Modular OT Product Suite

Below is the complete range, structured as individual detailed sections so you can review, specify, and budget each component clearly.

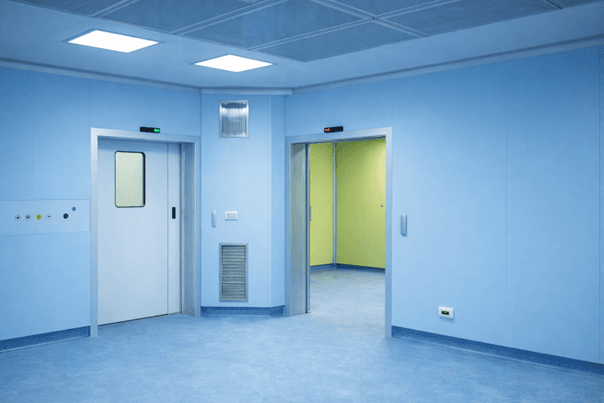

OT Wall & Ceiling Panels (PUF / GI / SS / HPL / PPGI Panels)

Sandwich panel system forming the backbone of the Modular OT structure with seamless, non‑porous, microbial‑resistant surfaces.

Specifications

Panel thickness: 50 mm
Insulation: 40 ± 2 kg/m³ PUF
PPGI‑GI antibacterial coated panels
Stainless Steel SS‑304 / SS‑316
High‑Pressure Laminate (HPL)
PPGG (Pre‑Painted Galvanized + Gypsum)

Benefits

✔Seamless cleanroom finish
✔Bacteria‑resistant surfaces
✔High fire resistance
✔Long life, low maintenance
✔Premium professional aesthetic

For more technical information, contact us.

OT Wall & Ceiling Panels (PUF / GI / SS / HPL / PPGI Panels) - Modular OT component

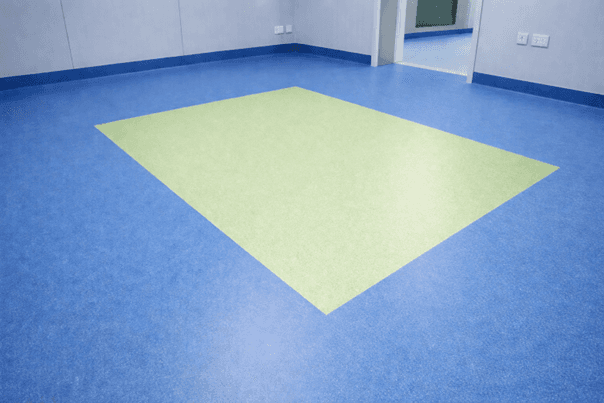

Anti‑Static Vinyl Flooring (ESD / Cleanroom Grade)

Electrostatic‑dissipative, antimicrobial flooring ideal for OTs and infection‑controlled clinical areas.

Features

Anti‑microbial and hygienic
Seamless hot‑welded joints
Excellent stain & chemical resistance
Conductive & static‑dissipative grades

Ideal For

✔Operating Rooms
✔ICU / NICU
✔CSSD
✔Cath Labs

For more technical information, contact us.

Anti‑Static Vinyl Flooring (ESD / Cleanroom Grade) - Modular OT component

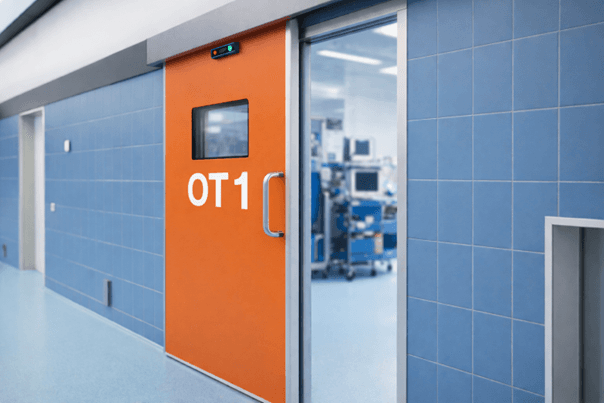

Hermetically Sealing OT Doors (HPL / SS)

Hermetic doors ensuring airtight closure to maintain OT pressure gradients and prevent cross‑contamination.

Types

Automatic sliding hermetic doors
Manual sliding doors
Swing doors
HPL or Stainless Steel finish options

Features

✔99% airtight sealing
✔Sensor‑based automation
✔Flush‑mounted viewing panels
✔Smooth, cleanable finish

For more technical information, contact us.

Hermetically Sealing OT Doors (HPL / SS) - Modular OT component

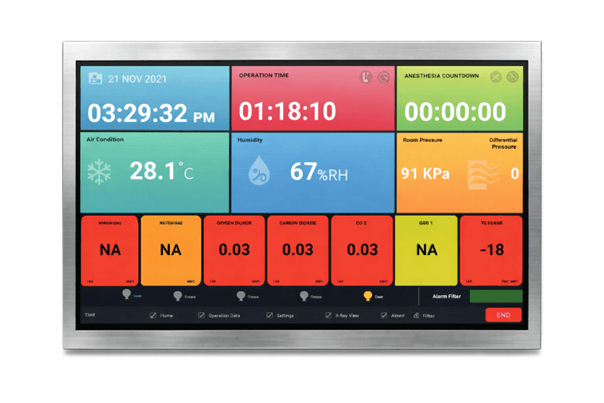

Surgeon Control Panel (SCP)

Centralized digital control system for critical OT parameters and infrastructure.

Functions

Time and clock display
Temperature & humidity monitoring
OT lighting & HVAC control
OT status indicators
UPS/IPS integration
DICOM & BMS compatibility

Benefits

✔Enhanced workflow
✔Intuitive interface
✔Improved surgical efficiency

For more technical information, contact us.

Surgeon Control Panel (SCP) - Modular OT component

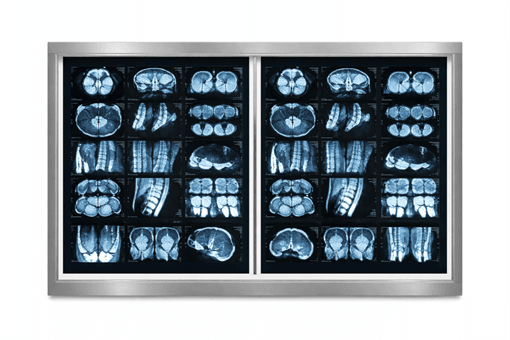

X‑Ray View Panel & Operating List Board

Cleanroom‑grade viewing and planning systems for imaging and daily OT schedules.

X‑Ray View Panel

LED‑illuminated
Low heat emission
1‑film or 2‑film options

Operating List Board

✔Magnetic or glass design
✔Cleanroom‑grade construction
✔Suitable for sterile areas

For more technical information, contact us.

X‑Ray View Panel & Operating List Board - Modular OT component

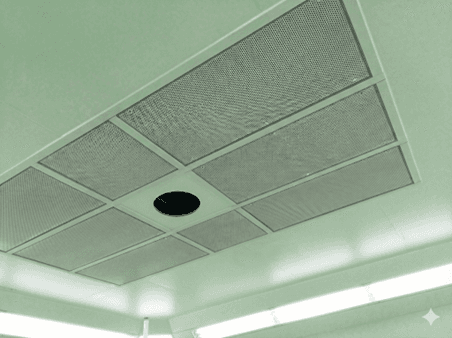

Laminar Airflow (LAF) Plenum with HEPA Filters

Provides unidirectional airflow delivering Class 100 / ISO‑5 sterility directly over the surgical field.

Features

H13/H14 grade HEPA filters
SS/Aluminium frame
Uniform airflow diffusers
Supports sterile field integrity

Benefits

✔Reduces Surgical Site Infections
✔Maintains sterile surgical zone
✔Meets NABH/JCI airflow standards

For more technical information, contact us.

Laminar Airflow (LAF) Plenum with HEPA Filters - Modular OT component

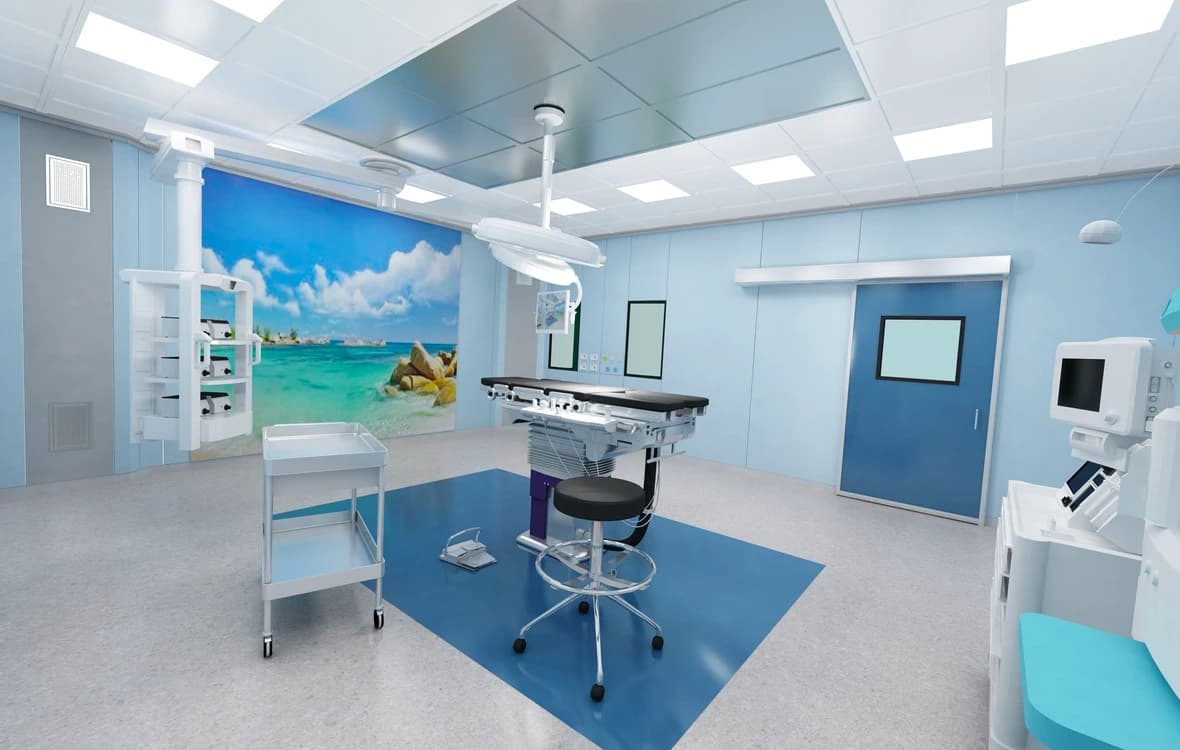

Peripheral Cleanroom Lights (IP54 Rated)

OT‑grade, peripheral lighting systems engineered for cleanroom performance.

Features

LED‑based, energy‑efficient
Low‑glare illumination
Flush‑mounted cleanroom grade

For more technical information, contact us.

Peripheral Cleanroom Lights (IP54 Rated) - Modular OT component

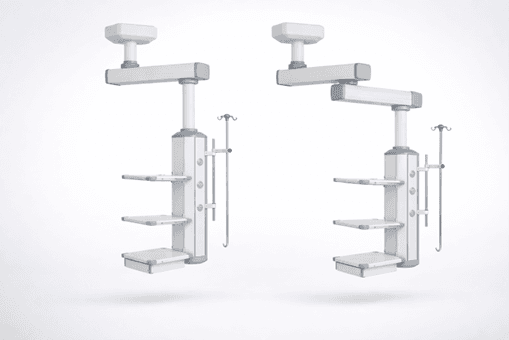

Ceiling‑Suspended Pendants (Anaesthesia & Surgeon Booms)

Customizable pendants for medical gases, power and equipment distribution.

Customization Options

Electrical sockets
Medical gas outlets (O₂, N₂O, Air, Vacuum, CO₂)
IV poles & catheter hooks
Monitor shelves & arms

Benefits

✔Clutter‑free OT workspace
✔Enhanced accessibility
✔Ideal for specialized surgeries

For more technical information, contact us.

Ceiling‑Suspended Pendants (Anaesthesia & Surgeon Booms) - Modular OT component

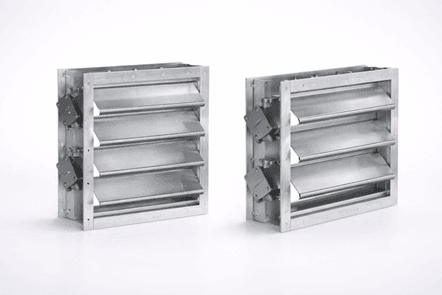

OT Pressure Relief Damper

Maintains correct positive pressure inside the OT under varying load conditions.

Features

SS/Aluminium construction
Adjustable set pressure
Motorized or mechanical options

For more technical information, contact us.

OT Pressure Relief Damper - Modular OT component

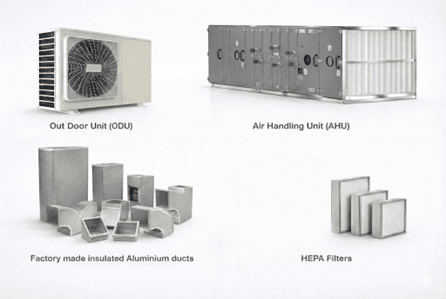

HVAC System for OTs

Engineered HVAC system to maintain critical OT environmental parameters.

Components

AHU with HEPA, pre & fine filters
Aluminium ducting
Outdoor unit with copper piping
Return air grilles & dampers
Fire damper

Performance Standards

✔Temperature: 18–22°C; Humidity: 40–60%
✔Air changes: 20–25 ACH; Pressure: +2.5 Pascal
✔ISO‑5 particle count; Noise < 50 dBA

For more technical information, contact us.

HVAC System for OTs - Modular OT component

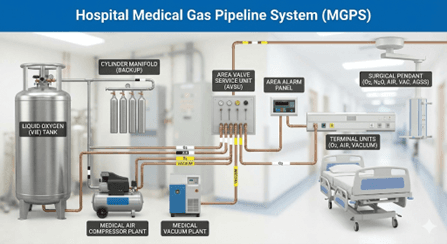

Medical Gas Pipeline System (MGPS)

Above‑ceiling MGPS installation with outlets on pendants, designed as per ISO standards.

Includes

Seamless copper pipelines (ISO 7396‑1)
Zone valve boxes
Gas outlets & AGSS

Benefits

✔Safe & leak‑proof
✔OT‑ready integration
✔Cleanroom compliant

For more technical information, contact us.

Medical Gas Pipeline System (MGPS) - Modular OT component

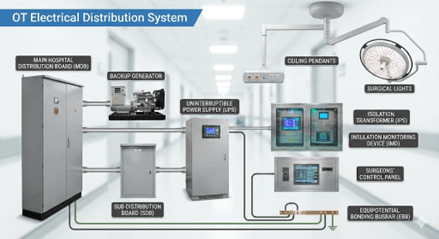

Electrical Distribution System for OT

Dedicated electrical backbone for critical OT equipment and safety.

Includes

Dedicated OT distribution board
UPS/IPS integration
Earthing & surge protection
Modular wiring

Optional

✔Touch displays
✔Power management alerts
✔Equipment monitoring

For more technical information, contact us.

Electrical Distribution System for OT - Modular OT component

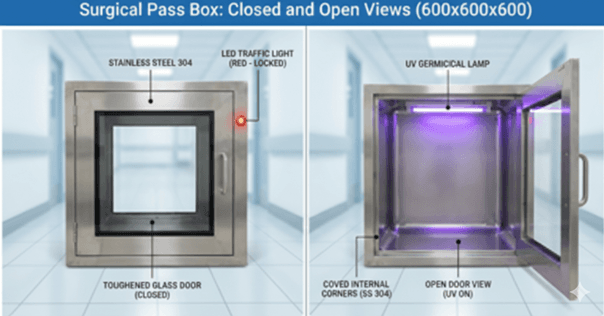

Pass Box (SS Cleanroom Grade)

For sterile material transfer between zones without cross‑contamination.

Features

Interlocking doors
UV‑C sterilization (optional)
SS‑304 body construction

For more technical information, contact us.

Pass Box (SS Cleanroom Grade) - Modular OT component

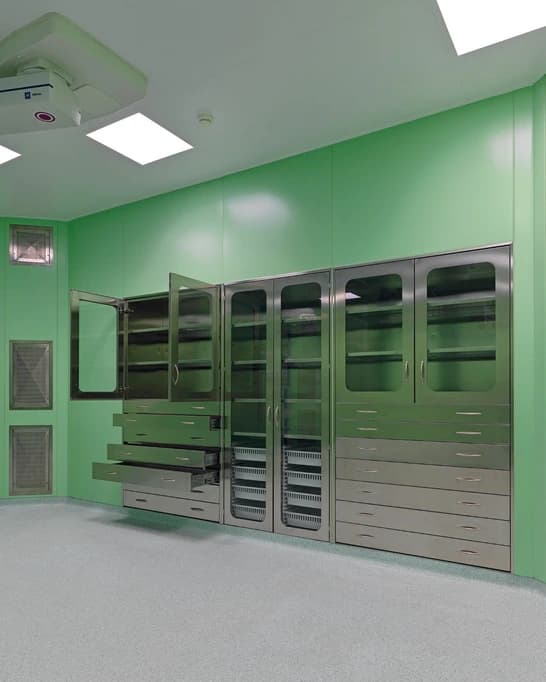

Clean Utility Cabinets / Storage Units

Sterile storage solutions for OT or adjoining corridors.

Features

PPGI‑GI or SS construction
Sliding or hinged options
Antibacterial surfaces

For more technical information, contact us.

Clean Utility Cabinets / Storage Units - Modular OT component

Double Glazed View Window

Observation window system that supports comfort without compromising sterility.

Features

Double‑glazed vacuum glass
Integrated blinds
Allows natural light
Enhances comfort in long surgeries

For more technical information, contact us.

Double Glazed View Window - Modular OT component

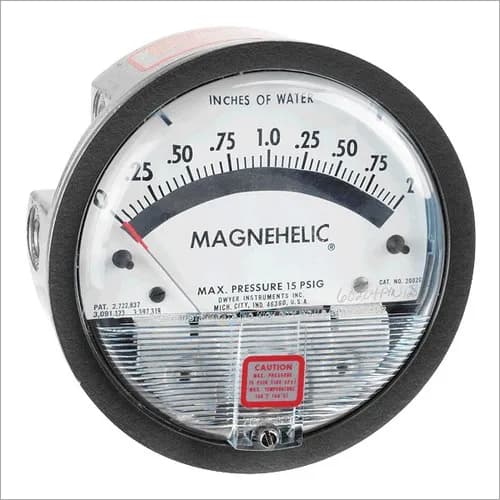

Differential Pressure Gauge

Monitoring device for OT differential pressure.

Specifications

0–50 Pascal range
Panel‑mounted
NABH compliant

For more technical information, contact us.

Differential Pressure Gauge - Modular OT component

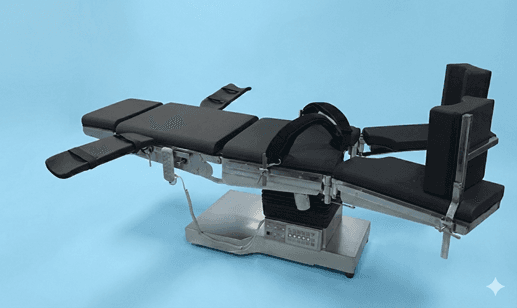

Operating Table

Multi‑specialty operating table range for varied surgical disciplines.

Features

SS‑304 construction
Electric/manual models
Ortho, General, Neuro, Gyn attachments
Sliding top, C‑ARM compatible
Economy and premium variants

For more technical information, contact us.

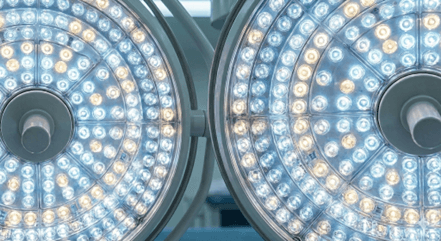

Operating Light

High‑performance OT lights delivering precise, shadow‑less illumination.

Features

Double dome LED
Camera option available
Up to 160,000 Lux
Sterilizable handles
Color temp 3500–5000K, CRI > 95

For more technical information, contact us.

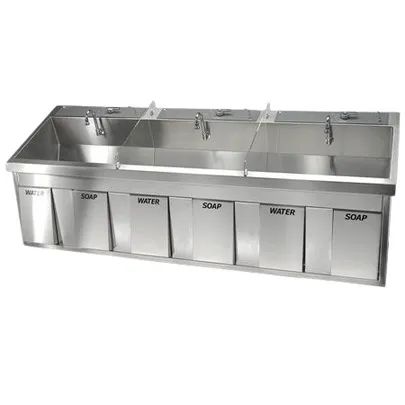

Scrub Station

Hygienic scrub systems for pre‑operative preparation.

Features

SS‑304 design
Sensor or foot operation
Smooth corner radius
Single / Double / Triple basin models

For more technical information, contact us.

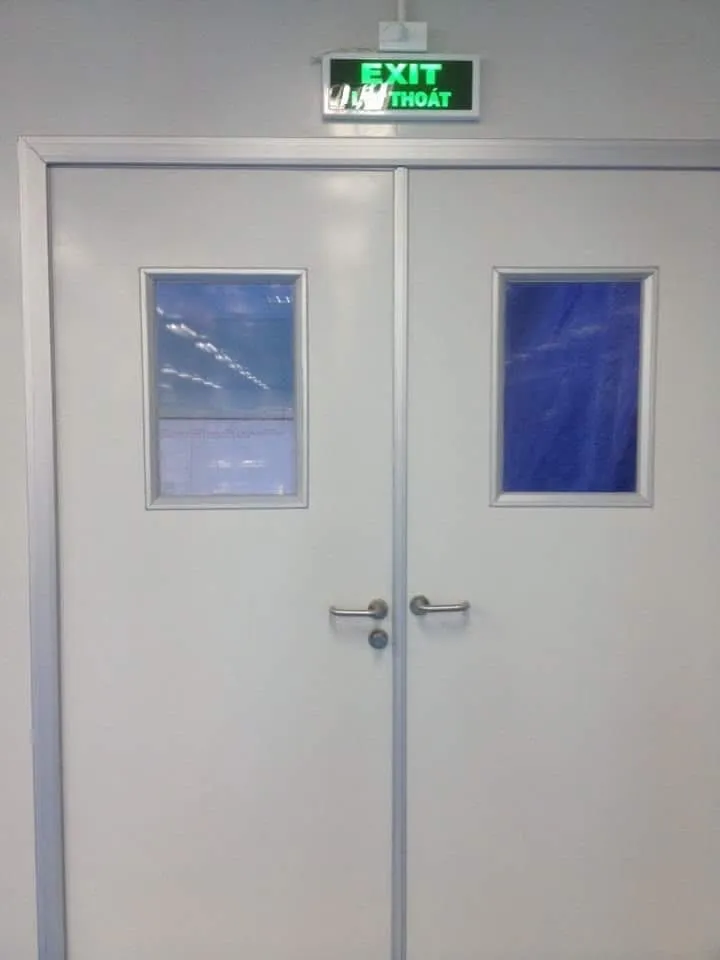

Secondary Exit Door

Provides contamination‑free exit pathway and zoning compliance.

For more technical information, contact us.

Secondary Exit Door - Modular OT component

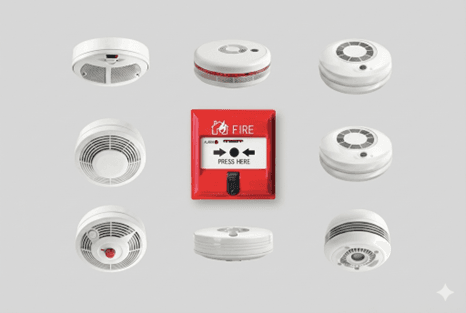

Fire Sensors & Alarm System

Integrated life‑safety detection and alarm infrastructure for the OT.

Features

Heat & smoke detection
Sprinkler activation
Emergency communication

For more technical information, contact us.

Fire Sensors & Alarm System - Modular OT component

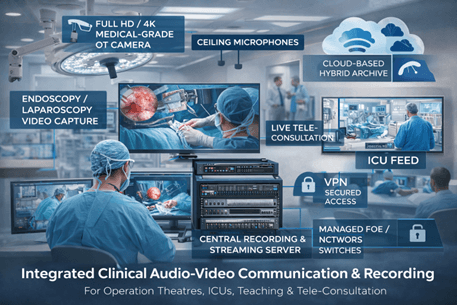

Digital OR / OT Integration

End‑to‑end digital integration of imaging, communication and data.

Features

Audio‑video recording
OR integration with imaging
Teaching & conferencing
Medico‑legal documentation
Patient consent digitalization

For more technical information, contact us.

Digital OR / OT Integration - Modular OT component

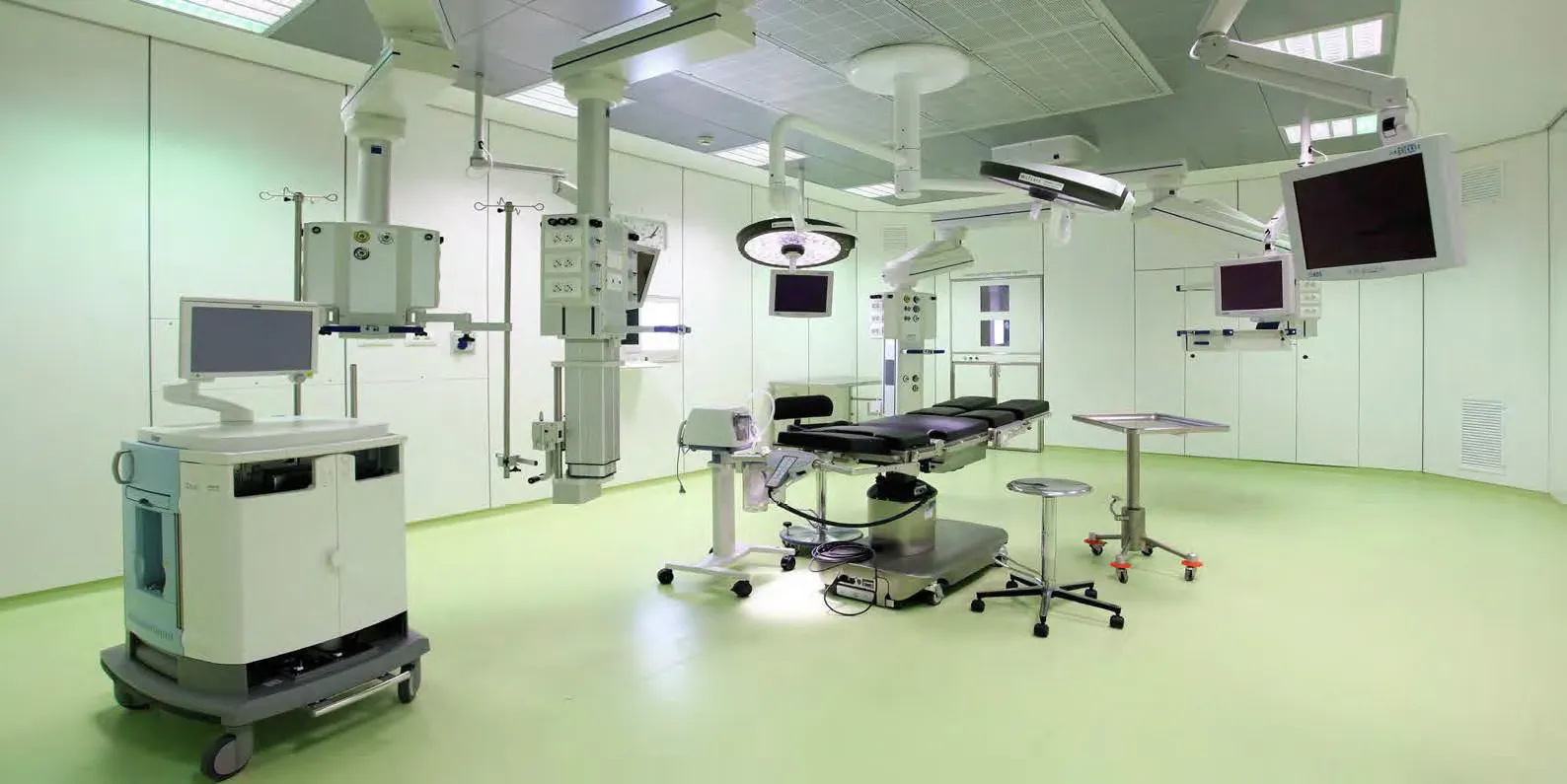

Key Benefits of Our Modular OT Systems

Turnkey modular OT solutions from consulting to commissioning.

Key Benefits

Seamless cleanroom construction
Highest sterility & hygiene
NABH / WHO / HTM compliant
Advanced components & materials
Turnkey execution from consulting to commissioning

For more technical information, contact us.

Key Benefits of Our Modular OT Systems - Modular OT component
